Redevelopment of the Cazzane Condominium

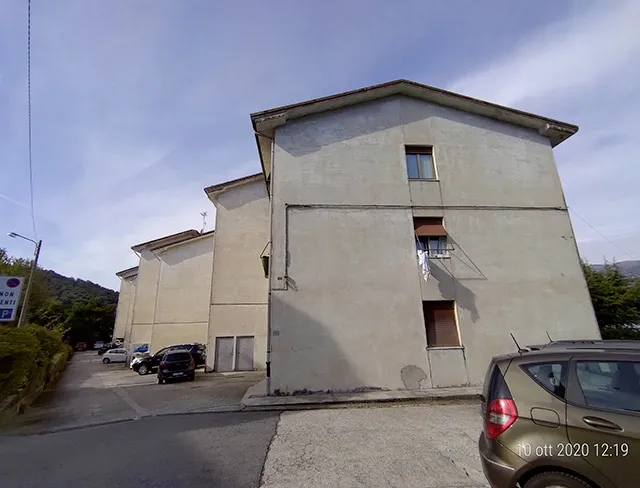

The condominium subject to redevelopment, built in the late 50s, is located in Via Cazzane 22-24-26 in Germignaga (VA). The complex, consisting of 3 buildings with 4 floors above ground, 3 of which are for residential use, consists of 18 residential units divided into 3 stairwells. The heating and production of DHW are autonomous for each real estate unit, the heat generators are traditional wall-mounted and the emission system is radiators.

The building envelope, that encloses the thermal areas subject to intervention, is composed by the floor of the real estate units located on the mezzanine / first floor, the roof slab of the housing units on the top floor towards the attic and the perimeter walls characterized by an empty box masonry in double brick planks.

The windows found on site generally have, where they have not been the subject of recent replacement, a metal frame with single glass or aluminum without thermal break with double glass; The openings have a regular cadence dictated by the architectural design of the building.

The component of the building envelope most dispersing is represented by the perimeter walls, followed by the windows, the roof slab, the walking surface of the mezzanine / first floor, the thermal bridges.
